Automotive Heat Shield Systems Explained: Keeping Heat Away From Critical Engine Bay Components

Modern engine bays run hotter than most drivers realize. Turbocharged engines, tightly packaged platforms, and emissions hardware push underhood temperatures well above ambient during routine driving, with exhaust-adjacent zones reaching far higher.

The damage shows up slowly:

• Wiring insulation hardens
• Rubber hoses lose flexibility
• Hood paint fades above the engine area
• Cabin comfort drops the longer the vehicle sits in traffic

An automotive heat shield is the layer that interrupts this process. It manages radiant heat transfer between the hottest components in the vehicle and everything around them, including the cabin floor, the firewall, the hood paint, and the audio system.

When the right barrier sits in the right zone, surrounding surfaces absorb less heat, sensitive components face less thermal stress, and cabin comfort improves during long drives and stop-and-go traffic.

This guide covers what an automotive heat shield does, where engine bay heat causes the most damage over time, and how layered thermal management helps control it.

What Is An Automotive Heat Shield?

An automotive heat shield is a material or barrier installed to control how heat moves between a hot engine bay component and the parts of the vehicle around it.

Different products do different jobs. Some reflect radiant heat, others slow heat transfer, and others insulate surrounding surfaces. Knowing the difference helps you choose the right setup.

Automotive heat shielding generally falls into three main categories:

• Reflective Barriers: Aluminum- or mylar-faced materials bounce radiant heat away from a surface. Used on the underside of the hood or in exhaust-adjacent zones, where line-of-sight heat is the main problem.
• Closed-Cell Acoustic Foam Insulators: Lightweight, self-adhesive closed-cell acoustic foam that slows conductive and convective heat transfer through firewalls, floors, roofs, and trunks while also absorbing airborne noise.
• Thermo-Acoustic Fiber Absorbers: High-temperature fiber materials that absorb both sound and heat at the source. Used to line engine compartments and high-heat zones where sound and heat need to be controlled before they spread.

Vibration damping products like butyl-based constrained-layer dampers are sometimes confused with heat shields. They reduce panel resonance, not thermal load, and they belong underneath thermal barriers in a layered build.

The right heat shield material depends on the temperature profile of the zone and whether the barrier needs to protect paint, plastics, wiring, or cabin space.

Where Engine Bay Heat Causes the Most Damage

Heat damage is incremental. Most owners don't notice it until something fails, and by then, degradation has been happening for years. These are the highest-cost zones to leave unprotected.

Wiring and Connectors

Sustained underhood heat dries out wiring insulation and embrittles connector housings. Loose pins, voltage drops, and intermittent electrical faults often trace back to long-term heat exposure rather than a single failure.

Rubber Hoses, Lines, and Seals

Coolant hoses, vacuum lines, and fuel system seals harden under repeated heat cycling. A flexible hose gradually hardens under repeated heat exposure until it cracks or splits near a clamp point. Roadside failure is the eventual outcome.

Hood Paint and Cabin Surfaces

Above the engine, the hood absorbs heat directly through the sheet metal. Clear coat hazes, dark colors fade, and adjacent panels stop matching the original finish. Below the dash, heat moves through the firewall and floor straight into the footwells, especially in trucks and SUVs with packed engine bays.

Plastic Trim and Intake Hardware

Heat fatigues plastic. Once underhood clips lose tension, the rattles start. Hot intake air also reduces engine performance on warm restarts, which is why shielding exhaust-adjacent components can improve long-term durability and maintain more consistent throttle response.

Do Heat Shields Really Work on Cars?

Yes, when the heat shield material matches the application and is installed correctly.

A generic reflective sheet stuck near an exhaust manifold with low-temp adhesive will likely fail within a year. A purpose-built composite barrier with the correct adhesive, sized for the surface and bonded to a clean substrate, belongs in a completely different category.

A heat shield does not eliminate heat. It controls how heat moves through the vehicle. The practical result is lower peak surface temperatures, smaller temperature swings between drive cycles, and slower thermal aging across nearby components.

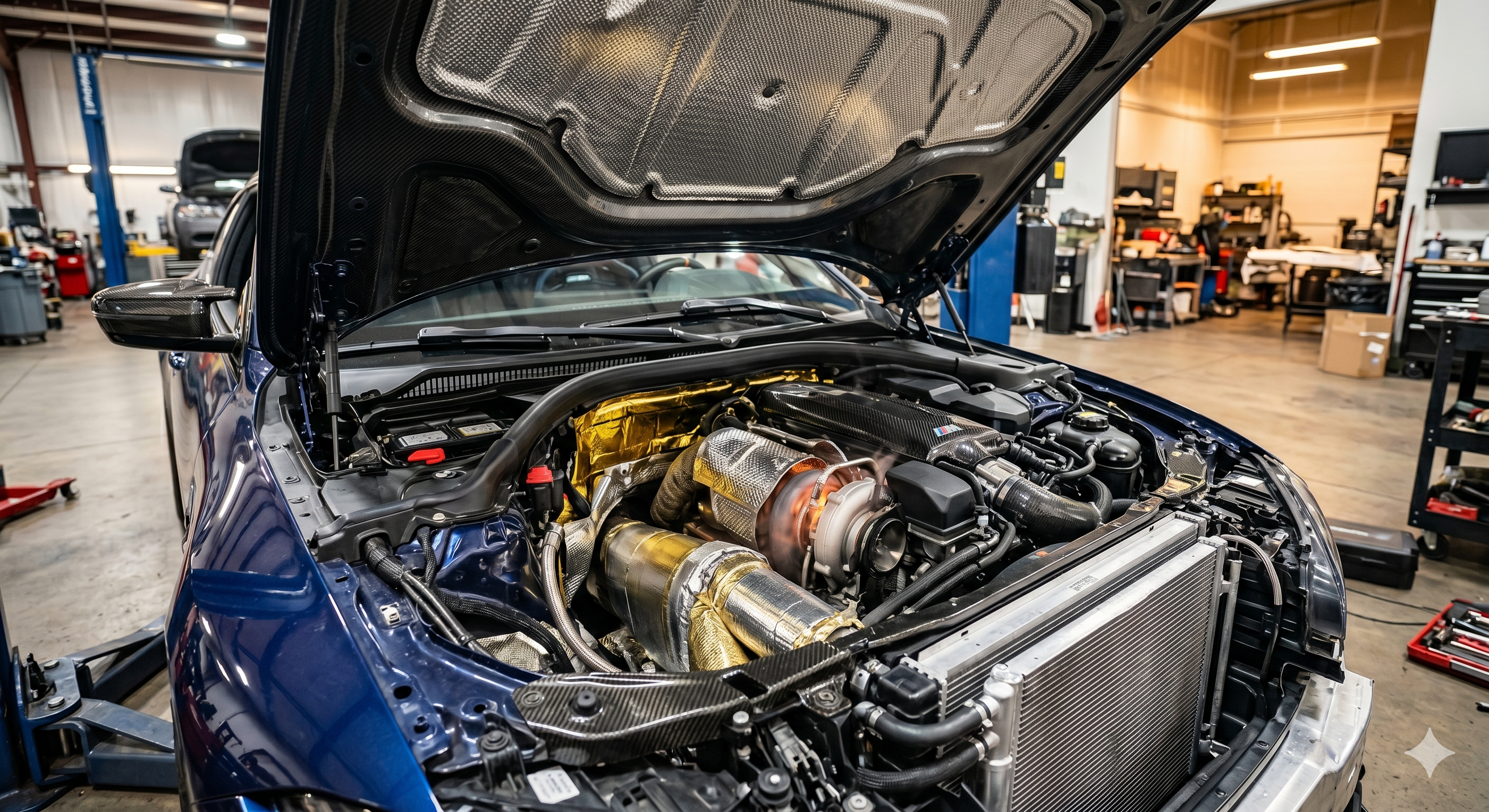

The most effective installations usually focus on a few key zones: hood undersides, the firewall, transmission tunnel, cargo floors, and exhaust routing areas.

DynaCore, a thermo-acoustic fiber rated to +350°F that absorbs sound and heat before they escape into the cabin, handles the engine compartment side. Meanwhile, Dynaliner handles the cabin side as a closed-cell acoustic foam that slows heat transfer through the firewall, floors, and roof. Together, they create a layered barrier between the heat source and the interior.

For builds that deal with high underhood temperatures, the right combination of damping and thermal insulation makes a noticeable difference over time. Explore the Dynamat automotive thermal management lineup.

Heat Shields vs. Hood Insulation vs. Thermal Liners

These products solve overlapping problems, but they aren't interchangeable. The table below maps each one to its job and its best install zone.

These materials are designed to work together as a layered thermal management system, with each product handling a different type of heat exposure.

Where Thermal Management Makes the Biggest Difference

Placement often has a bigger impact than the material itself. The highest-return install zones are usually the same across most vehicles:

• Underside of the Hood: Slows heat into the panel and reduces engine noise reflection into the cabin.
• Firewall and Kick Panels: The biggest heat path into the cabin sits behind the dashboard.
• Floorboards Above Exhaust Routing: Critical on trucks, classics, and off-road vehicles.
• Transmission Tunnel: Drivers feel this on long highway runs.
• Cargo Floors in Trucks and SUVs: Often unprotected from the factory.
• Localized Exhaust Shielding: Around turbos, manifolds, and catalytic converters.

Layered thermal management usually outperforms full-surface coverage alone: damping for vibration control, thermal insulation in high-transfer zones, then hood and firewall barriers where radiant heat is strongest.

Can You Make Your Own Heat Shield for Your Car?

DIY heat shields exist. Aluminum sheet, fiberglass mat, and adhesive-backed reflective tape can work in low-temperature, lower-stress applications. The common failure points are fairly predictable:

• Adhesives fail at the temperatures the shield is supposed to manage.
• Materials sag, peel, or curl after repeated heat cycles.
• Improvised shielding near exhaust components can create safety concerns if it loosens or contacts hot metal.
• Edges fray, allowing material particles to spread into the engine bay or wiring areas.

Purpose-built automotive heat shield materials are engineered for sustained heat exposure, vibration, and long-term durability:

• Dynaliner carries a temperature resistance range of -65°F to +300°F with a high-temperature acrylic adhesive.
• DynaCore is rated to +350°F.
• The Hoodliner is rated from -40°F to +225°F.

Those are the kinds of spec ranges DIY materials rarely match, which is why they hold up where improvised shielding tends to peel, curl, or fail.

Common Signs Your Vehicle Needs Better Heat Management

Heat issues rarely announce themselves, and the early signs are easy to miss:

• Cabin heat building during long drives, even with the climate control running
• Warm footwells during extended freeway driving
• Hood paint fading or hazing above the engine area
• Hardened wiring insulation or brittle underhood plastic
• New rattles from the dashboard, doors, or transmission tunnel
• An audio system that sounds harsher or thinner than before, often alongside rising cabin noise

None of these automatically point to a major problem on their own. Together, they can indicate that heat exposure is placing more stress on the vehicle than the factory thermal management system was designed for.

Good Thermal Management Starts With the Right Zones

Most thermal problems in a vehicle trace back to a few predictable areas: the firewall, transmission tunnel, exhaust routing, and the underside of the hood. Treating those zones strategically usually delivers better long-term results than covering every surface with the same material.

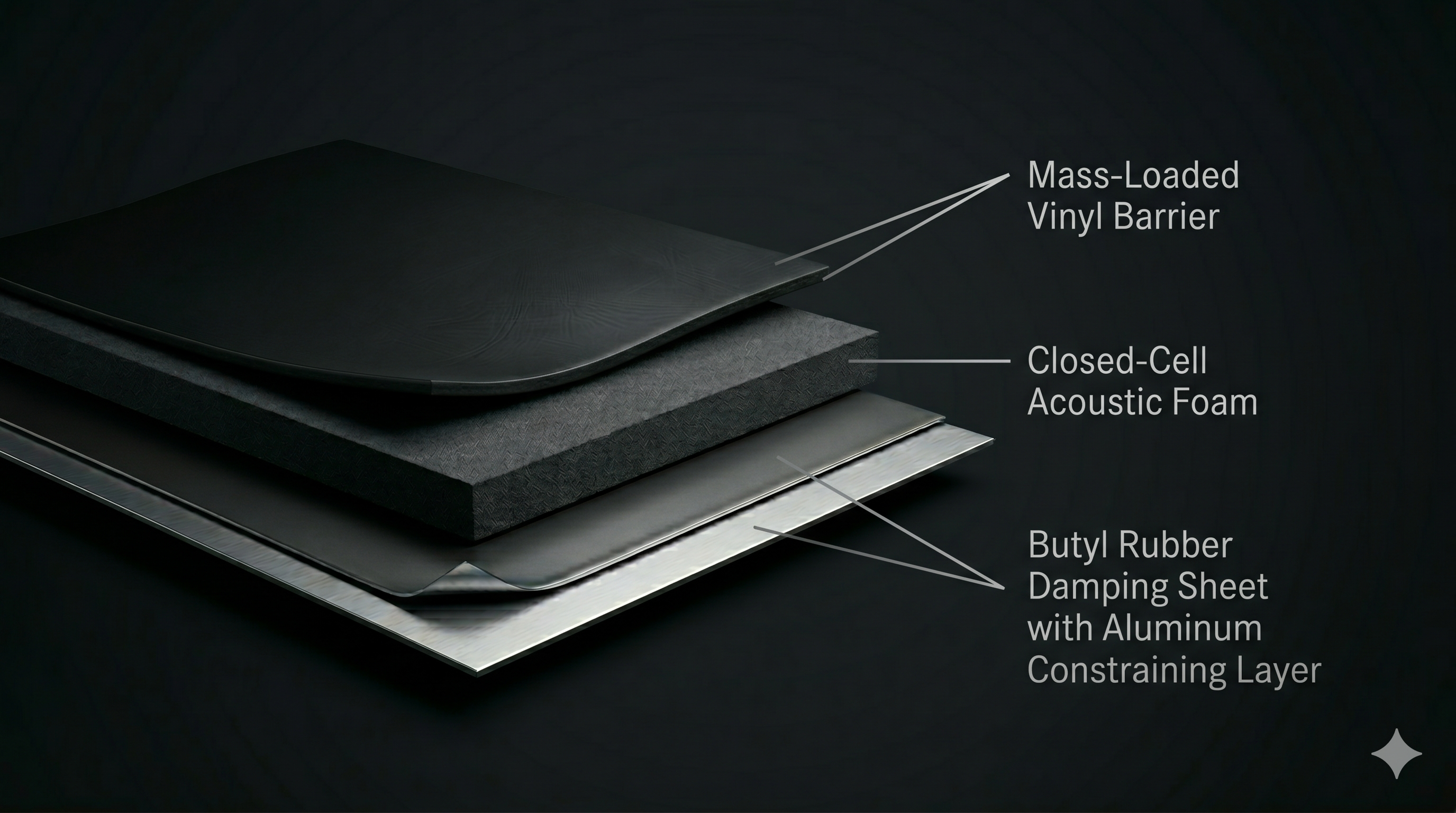

Effective thermal management also works in layers. Constrained-layer damping controls panel vibration, thermal insulation slows heat transfer, and reflective barriers help manage radiant heat near the hottest components. Each material handles a different part of the problem.

That layered approach is the foundation behind the Dynamat automotive collection: Dynamat Xtreme for vibration control, Dynaliner as a closed-cell acoustic foam for cabin-side thermal insulation, DynaCore as a thermo-acoustic fiber for engine-compartment heat and sound absorption, and The Hoodliner for radiant heat reflection under the hood.

Automotive Heat Shield: FAQs

Why Does My Car's Heat Shield Rattle?

Factory exhaust heat shields are thin stamped metal held by spot welds or clips. Heat cycling, corrosion, and road vibration loosen those fasteners over time. The rattle is a warning to inspect the shield before it fails completely.

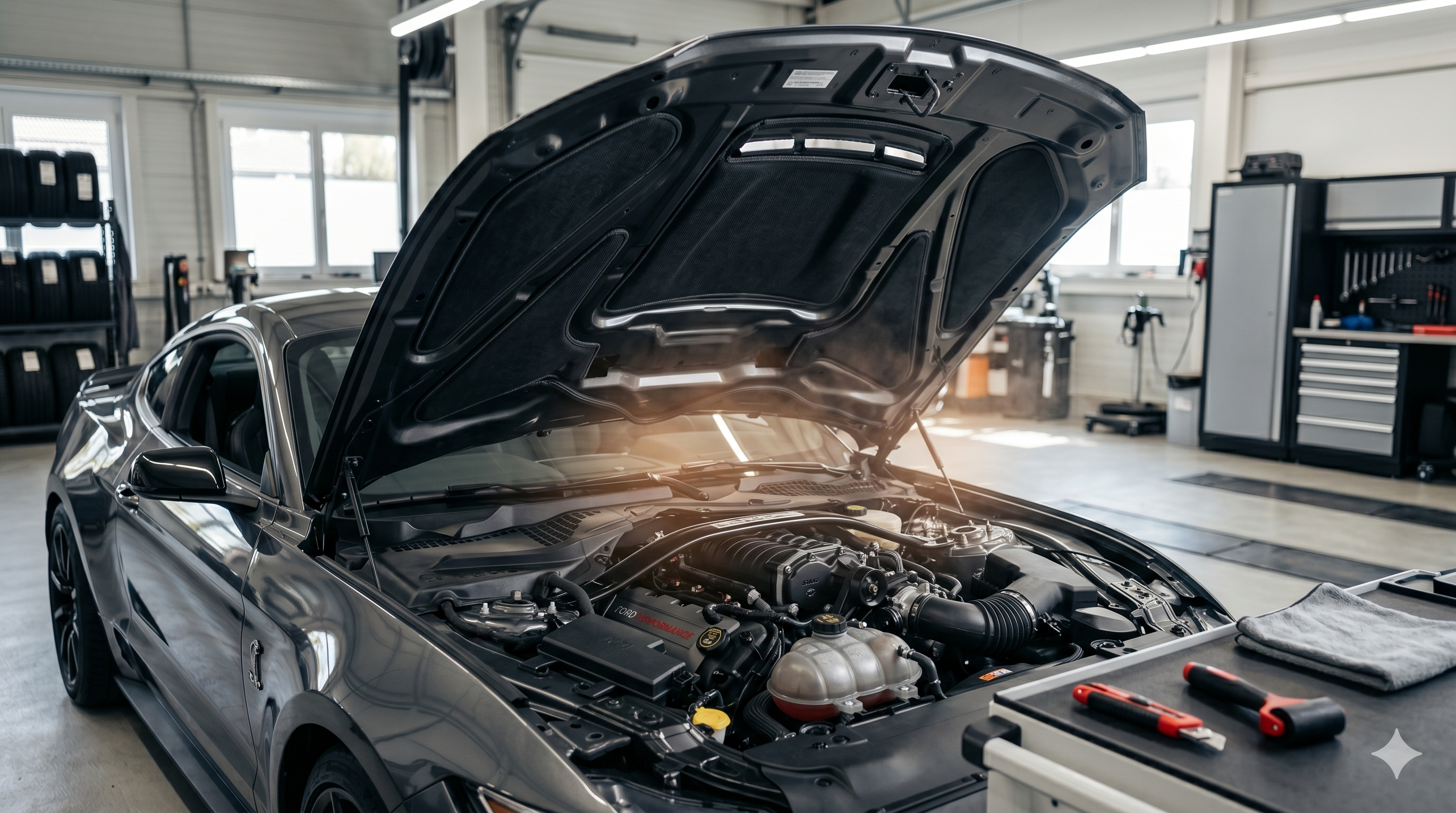

Does Hood Insulation Help With Engine Heat?

Yes. Hood insulation slows heat transfer into the hood panel, reduces peak hood temperatures, and helps preserve paint above the engine area. It also dampens engine noise that would otherwise reflect off bare sheet metal back toward the cabin.

Can Heat Damage Automotive Wiring Over Time?

Yes. Sustained underhood heat hardens wiring insulation, embrittles connector housings, and accelerates oxidation at contact points. Reducing underhood temperatures through thermal insulation extends the working life of every electrical component in the bay.
