Car Floor Insulation: How to Treat the Biggest Noise and Heat Surface in Your Vehicle

Hot pedals, road texture you can feel through the carpet, and tire roar rising from under your feet on every on-ramp all point to the same culprit.

If your cabin runs loud and warm, the floor is almost always the reason, and it’s the most overlooked surface in the car. From the factory, it’s usually thin, bare sheet metal under a flimsy carpet pad, sitting closest to the road and exhaust, so treating it correctly makes the whole cabin quieter and cooler.

Why the Floor Is the Most Important Surface to Treat

Most first-time installers start with the doors because that’s where the speakers live.

The floor, though, is where the physics work hardest against you. As the largest surface, it:

• Gives more bare metal the freedom to vibrate
• Sits in the direct path of structure-borne noise, with tire roar and suspension impacts traveling straight up through the floor pan
• Carries the most heat, with the transmission tunnel and exhaust feeding engine heat into your footwell

That’s why professional installers treat the floor before the doors. It moves the needle on vehicle NVH faster than anywhere else. It's also the root of the most common complaint we hear: a vehicle that sounds like a tin can at highway speed and runs warm underfoot.

The cause is rarely the engine or the tires. It’s untreated sheet metal, and car floor insulation closes that gap.

Heat and Noise: The Four Problems a Floor Has to Solve

A floor faces four problems, and no single product solves all of them, which is exactly why a layered system exists.

Heat arrives two ways:

• Conduction, where hot metal like the transmission tunnel passes engine and exhaust heat straight through
• Radiation, where the exhaust and sun-baked pavement radiate heat up at the underside of the floor

Noise arrives two more ways:

• Structure-borne vibration, the low-frequency energy that makes the floor pan ring like a drum and that foam alone will never stop
• Airborne noise, the road and exhaust sound that travels through the air once the metal is quiet

Damping handles the vibration, while insulation and mass handle the heat and airborne noise. The floor is only one panel, though, and that same structure-borne energy travels through the doors, roof, and wheel wells.

If you want to quiet the whole car and not just the floor, our guide to road noise reduction covers the full-vehicle approach.

Damping, Absorbing, and Blocking: Three Jobs, Three Materials

Here’s where most DIY installs go wrong: people buy one product and expect it to do everything. There are three distinct acoustic jobs, and each needs a different material.

Damping and insulation are not interchangeable, which is why our products are designed to work as a layered system rather than a single mat. Each layer handles the part of the problem it does best.

The Engineered Floor System, Layer by Layer

The floor is the largest metal surface in your vehicle, sitting right between the cabin and the two things you want to keep out: road noise from the tires and heat from the exhaust and transmission. One product rarely fixes it because damping vibration and blocking heat are different jobs.

The fix is a layered system, each layer engineered for one task and built to work with the one beneath it.

Layer 1: Dynamat Xtreme (Vibration Damping)

Dynamat Xtreme is a patented, lightweight constrained-layer damper built from a butyl core and an aluminum constraining layer. It conforms to the contours of a floor pan and is thin enough to work into footwells and around the transmission tunnel.

Tested to the SAE J1637 standard, Xtreme measures up to 88% above the industry average at 200Hz, the low frequencies where road and tire noise are hardest to control.

It bonds to clean, bare metal at room temperature with no heat gun needed, resists water and oils, and meets the FMVSS 302 flammability standard.

You don’t need full coverage for damping to work, but on a large surface like the floor, generous, gap-free coverage of the pan, tunnel, and seat areas gives the most consistent result.

Layer 2: DynaPad or Dynaliner (Insulation and Barrier)

With the metal damped, the second layer handles heat and airborne noise. DynaPad is a heavy-duty thermo-acoustic composite that replaces your carpet pad, pairing a one-pound-per-square-foot mass-loaded vinyl (MLV) barrier with acoustic foam and a urethane moisture facing.

Its MLV core blocks low-frequency noise and exhaust heat, and it carries a Sound Transmission Class rating of 28. Choose it for the strongest control of heat and drone.

Dynaliner is a soft, self-adhesive closed-cell acoustic foam for tighter spaces, available in 1/8", 1/4", and 1/2" thicknesses (R-values 0.42, 0.83, and 1.7). Use the thickest your clearance allows. Layering Xtreme with Dynaliner nearly doubles the floor's total thermal resistance.

Best Floor Setup by Vehicle Type

The damping base stays the same. The thermal layer on top is what you tune to the vehicle.

How to Insulate a Car Floor, Step by Step

This is a peel-and-stick job that needs only basic tools.

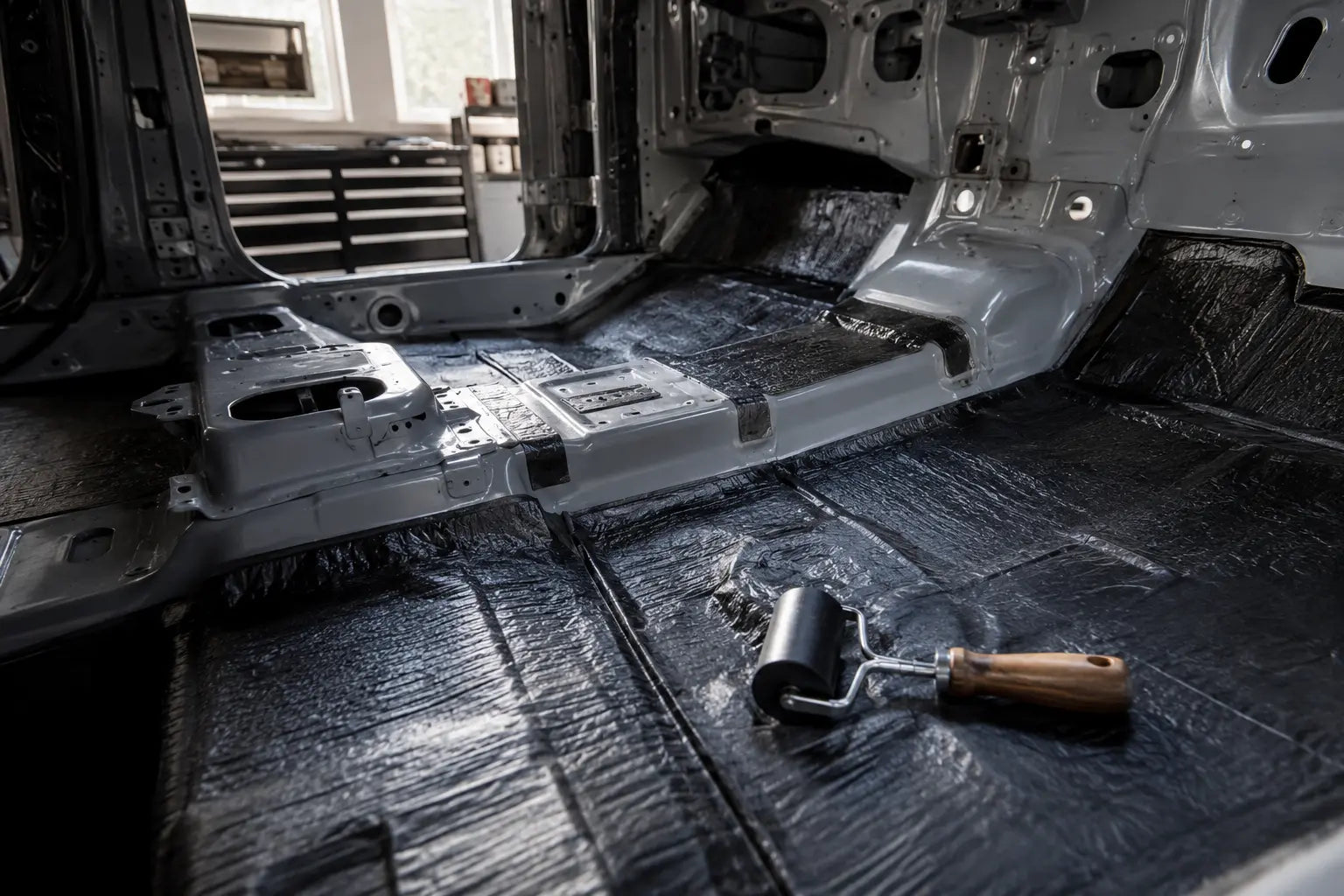

1. Strip the floor: Remove the seats, console, and factory carpet and pad to expose the bare floor pan.
2. Clean the metal: Remove dust, grease, moisture, and other foreign matter with the appropriate cleaner. Treat any rust first, and work at room temperature.
3. Cut, then peel: Cut Dynamat Xtreme to size before removing the liner, and start along the shortest edge to avoid air pockets.
4. Roll it down: Press firmly into the contours of the pan and tunnel with a roller, working out air pockets, and seal seams with DynaTape.
5. Add the thermo-acoustic layer: Apply DynaPad or Dynaliner over Xtreme, and carry it up the firewall transition.
6. Reinstall: DynaPad replaces the carpet pad directly. With Dynaliner, refit your carpet on top, then the console and seats.

No heat gun required, since Xtreme bonds at room temperature.

To skip measuring altogether, a vehicle-specific Dynamat Xtreme Custom Cut Floor Kit supplies CNC-cut pieces patterned to your exact car. No guesswork, no wasted material.

Is Sound Deadening a Car Floor Worth It?

Yes. The floor returns the biggest gain of any single surface because it’s the largest and sits in the direct path of both noise and heat.

The hesitation usually comes down to cost. Generic roll-and-cut mats look similar on a spec sheet and cost less per square foot. But cheaper adhesives are more prone to lifting in heat, and a floor you have to strip and redo costs more than doing it once with material that holds.

Set realistic expectations, too. The goal is a clear, noticeable drop in road and tire noise at highway speeds and a cooler footwell on long drives, not total silence. In practice, that means easier conversation at speed, a stereo that sounds clean at lower volume, and less heat coming through the floor.

Which Car Floor Insulation Do You Need?

Every floor starts with a Dynamat Xtreme damping base, then adds the top layer that fits your goal and your clearance.

Start with a precise, gap-free base, then block heat and drone on top.

Find your floor kit in the Dynamat automotive collection.

Car Floor Insulation: FAQs

Can I Insulate My Car Floor Myself?

Yes. It’s a peel-and-stick install that needs only scissors or a razor knife and a roller. Strip the carpet, clean the bare pan, apply Dynamat Xtreme at room temperature, then layer DynaPad or Dynaliner over it. A Custom Cut Floor Kit speeds it up with pre-cut, vehicle-specific pieces.

What Is the Best Insulation for a Car Floor?

A two-layer system carries the load: a constrained-layer damper (Dynamat Xtreme) on the bare metal, then a thermo-acoustic top layer. Use DynaPad for maximum heat and low-frequency control or Dynaliner for thermal insulation in tighter spaces.

Do I Have to Remove the Carpet?

Yes. The damping layer has to bond to clean, bare metal, so the carpet and pad come out first. DynaPad then replaces the factory carpet pad, while Dynaliner installs under your existing carpet.

Can Floor Insulation Trap Moisture or Cause Rust?

Not with the right materials and prep. Xtreme bonds directly to clean, dry metal, DynaPad has a urethane moisture-barrier facing, and Dynaliner will not hold water or promote rust. The key is starting with clean, rust-free metal.

How Much Weight Does Floor Insulation Add?

Less than most people expect. Dynaliner runs about 0.04 to 0.17 lb per square foot depending on thickness, and DynaPad about 1.09 lb per square foot because of its mass-loaded vinyl barrier. That weight isn’t a downside. Mass is what stops low-frequency noise, so the heavier barrier is doing the work.
